Implement Visitor Authentication using Node and Azure AD

In this guide, we will show you how to set up Visitor Authentication using Node and Azure AD (now known as Microsoft Entra ID).
Prerequisites
node  and npm  are installed on your computer. Familiarity with the terminal (or command line). You can learn how to install Node here. NPM is bundled with Node.
Setting up Entra
First, sign in to Entra platform. In the left sidebar, navigate to Identity > Applications > App registrations.

And click on New registration button in the screen that opens up. Name it appropriately.
Under Supported account types, select Accounts in this organizational directory only.
Under Redirect URI, select the type as Web and enter http://localhost:3000/auth/redirect as the value.
Click Register.

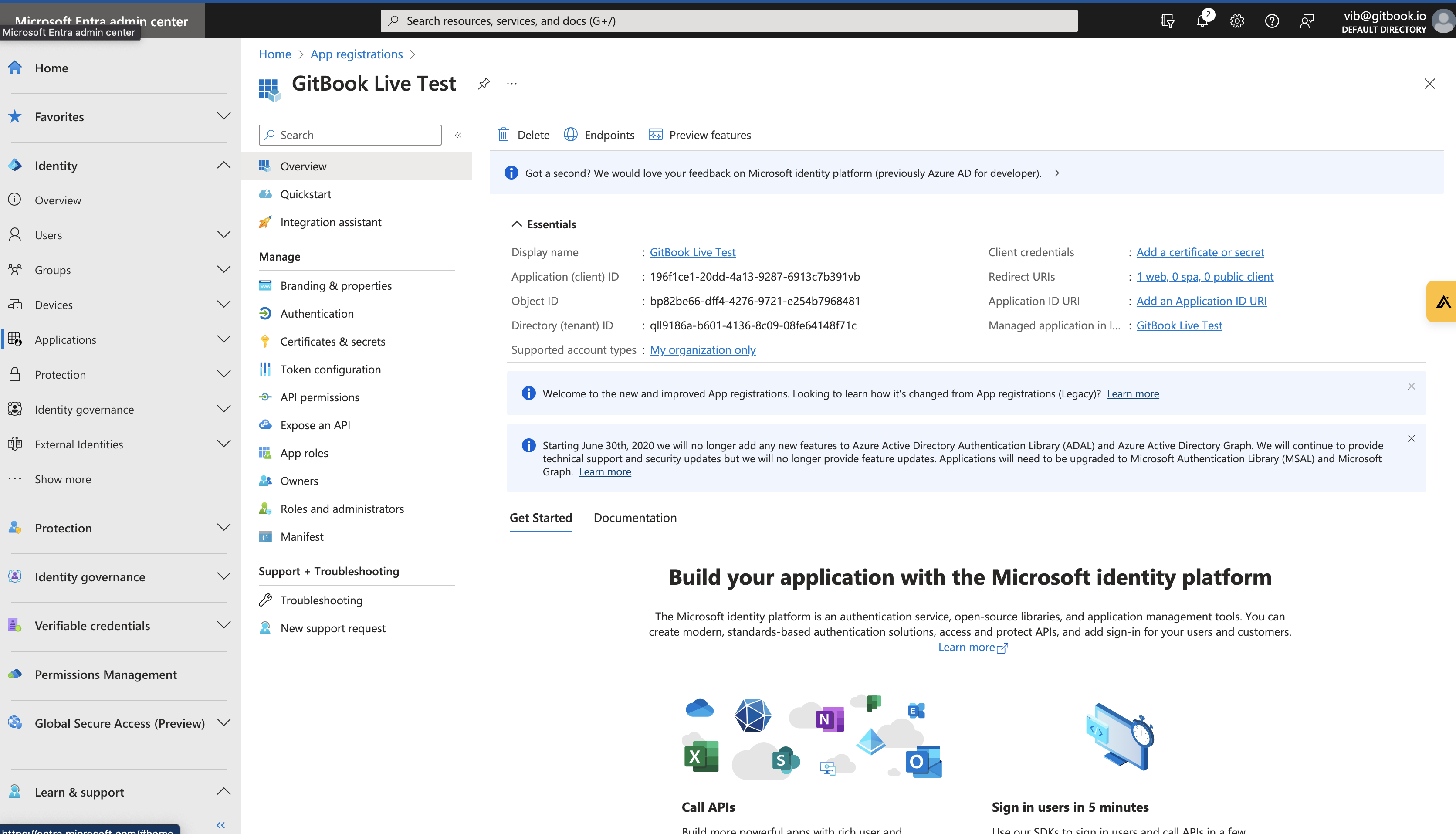

You should see a screen like the following
Click on "Quickstart" under "Overview". Select Web Application on the screen that opens up. And select "Node.js web" as the platform.
You should see the following screen:
Click on "Make this change for me" and then click "Make updates" in the side panel that shows up.
Click "Download the code sample". This will download a zip file, extract it and open the folder in your favorite code editor (say, VS Code).
Setting up the Backend
Go back to the Overview page
Click on "Add a certificate or secret". You should see the following screen
Click on "New client secret". Enter a suitable description in the side panel that shows up and click add. Copy the value of the secret just created.

Open up the .env file in the App sub-folder in your code editor. For the CLIENT_SECRET value, paste the value you just copied.
The CLOUD_INSTANCE, TENANT_ID, and CLIENT_ID values should already be filled in with your app's values. Make sure they're correct by comparing them to the details shown on the Overview page.
For EXPRESS_SESSION_SECRET, generate a new secret by opening the terminal app on your computer and running openssl rand -hex 32. Paste the value generated into EXPRESS_SESSION_SECRET.
Save the file.
Navigate to the App subfolder in your terminal and run npm install jsonwebtoken . Now run npm install.
Setting up Visitor Authentication
Now, we need to use GitBook. Go to the space you want to publish behind visitor authentication. Open the Share modal and click "Share to an audience", and enable the "Publish with Visitor Authentication" toggle.
Make note of the Private key and the Space URL. We will need them.
Enter http://localhost:3000/auth/signin as the Fallback URL. Note that this is different from the one shown in the image above.
Go back to your code editor and open up the index.js file located in the routes folder under the App folder. Add
const jwt = require('jsonwebtoken');
to the top of the file. Replace the existing router.get definition
router.get('/', function (req, res, next) {
// the existing body of the function is here
});
 with the following
router.get('/', function (req, res, next) {
    if (req.session.isAuthenticated) {
        const token = jwt.sign({}, "GITBOOK SIGNING KEY", { expiresIn: '1h' });
        const redirectURL = `https://example.gitbook.io/example/?jwt_token=${token}`;
        res.redirect(redirectURL);
    }
    else {
        res.redirect('/auth/signin')
    }
});
Replace GITBOOK SIGNING KEY with the Private Key value you copied from the GitBook Visitor Authentication Share modal.
In your code editor, in the following line
const redirectURL = `https://example-url.gitbook.io/example/?jwt_token=${token}`
Replace everything before ? with the Space URL you copied from the GitBook Visitor Authentication Share modal. Make sure there's only one / right before the ?.
Your router.get definition should look something like the following:
router.get('/', function (req, res, next) {
    if (req.session.isAuthenticated) {
        const token = jwt.sign({}, "91vb33d9-69f8-1pce-84bl-72b10234bbh0", { expiresIn: '1h' });
        const redirectURL = `https://vib-test.gitbook.io/azure/?jwt_token=${token}`;
        res.redirect(redirectURL);
    }
    else {
        res.redirect('/auth/signin')
    }
});
Note that your signing key and redirect URL will be different from the one shown above.
Save the index.js file.
Make sure you're in the App subfolder in your terminal and run npm start .
If you see node ./bin/www in the output, the Visitor Authentication set up is complete!
In an incognito window, go to the GitBook space you just put behind Visitor Authentication. You will be prompted to sign in with Microsoft. If everything is set up correctly, you will be able to log in successfully and see the contents of the space.
